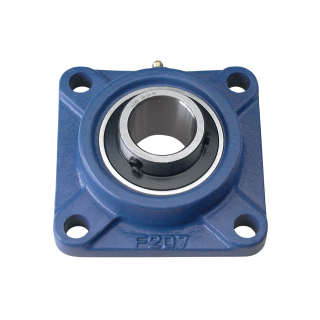

Flanschlagergehäuse 4- Loch eckig UCF 207 komplett
Abmessungen:
Andere Dimensionen auf Anfrage: m.wagner@wagnerinox.at
| Dimension | d | A | E | Bi | L | S | Z | Gewicht |
| UCF 204 | 20mm | 86mm | 64mm | 31mm | 25,5mm | 12mm | 33,3mm | 0,63 kg |
| UCF 205 | 25mm | 95mm | 70mm | 34mm | 27mm | 12mm | 35,7mm | 0,82kg |
| UCF 206 | 30mm | 108mm | 83mm | 38mm | 31mm | 12mm | 40,2mm | 1,10kg |
| UCF 207 | 35mm | 117mm | 92mm | 42,9mm | 34mm | 14mm | 44,4mm | 1,50kg |
| UCF 208 | 40mm | 130mm | 102mm | 49,2mm | 36mm | 16mm | 51,2mm | 1,90kg |
| UCF 209 | 45mm | 137mm | 105mm | 51,6mm | 38mm | 16mm | 52.2mm | 1,90kg |
| UCF 210 | 50mm | 143mm | 111mm | 51,6mm | 40mm | 16mm | 54,6mm | 2,30kg |
Andere Dimensionen auf Anfrage: m.wagner@wagnerinox.at
| Artikelgewicht: | 1.50 Kg |
